Dependencies
Dependencies and dependency chains
When defining jobs with more than one instruction, dependencies must be specified to declare how one instruction should depend on another in time.
The simplest example is two instructions, the second of which starts when the first one completes. (A | B)
graph TD
Frame1["Frame"]
Interval1["50 ns"]
Waveform1["ConstantWaveform"]
Waveform1 -- "Duration" --- Interval1
Instruction2["ModulatedPulse"]
Instruction2 -- "Frame" --- Frame1
Instruction2 -- "Envelope" --- Waveform1
Radians2["1 rad"]
Instruction2 -- "PhaseOffset" --- Radians2
Instruction3["ModulatedPulse"]
Instruction3 -- "Frame" --- Frame1
Instruction3 -- "Envelope" --- Waveform1
Radians3["2 rad"]
Instruction3 -- "PhaseOffset" --- Radians3
Instruction4:Alignment["EndToStart"]
Instruction4:Relationship["InstructionRelationship"]
Instruction4:Relationship -- "Alignment" --- Instruction4:Alignment
Instruction4["Dependency"]
Instruction4 -- "Relationship" --- Instruction4:Relationship
Instruction4 -- "Lhs" --- Instruction2
Instruction4 -- "Rhs" --- Instruction3Because, like drive instructions, Dependencies inherit from Instruction, they themselves can be fields in another dependency, i.e. one can declare a dependency between two other dependencies or a dependency and another instruction. This enables three instructions to be chained. (A | B | C)
graph TD
Frame1["Frame"]
Interval1["50 ns"]
Waveform1["ConstantWaveform"]
Waveform1 -- "Duration" --- Interval1
Instruction3["ModulatedPulse"]
Instruction3 -- "Frame" --- Frame1
Instruction3 -- "Envelope" --- Waveform1
Radians2["1 rad"]
Instruction3 -- "PhaseOffset" --- Radians2
Instruction4["ModulatedPulse"]
Instruction4 -- "Frame" --- Frame1
Instruction4 -- "Envelope" --- Waveform1
Radians3["2 rad"]
Instruction4 -- "PhaseOffset" --- Radians3
Instruction5:Alignment["EndToStart"]
Instruction5:Relationship["InstructionRelationship"]
Instruction5:Relationship -- "Alignment" --- Instruction5:Alignment
Instruction5["Dependency"]
Instruction5 -- "Relationship" --- Instruction5:Relationship
Instruction5 -- "Lhs" --- Instruction3
Instruction5 -- "Rhs" --- Instruction4
Instruction6["ModulatedPulse"]
Instruction6 -- "Frame" --- Frame1
Instruction6 -- "Envelope" --- Waveform1
Radians4["3 rad"]
Instruction6 -- "PhaseOffset" --- Radians4
Instruction7:Alignment["EndToStart"]
Instruction7:Relationship["InstructionRelationship"]
Instruction7:Relationship -- "Alignment" --- Instruction7:Alignment
Instruction7["Dependency"]
Instruction7 -- "Relationship" --- Instruction7:Relationship
Instruction7 -- "Lhs" --- Instruction5
Instruction7 -- "Rhs" --- Instruction6While more complex arrangements are possible, the normal way to create sequences of multiple instructions is to create a left-heavy tree. An unbalanced tree may seem inefficient to someone unfamiliar with ASTs but is actually normal. (A | B | C | D)
graph TD
Frame1["Frame"]
Interval1["50 ns"]
Waveform1["ConstantWaveform"]
Waveform1 -- "Duration" --- Interval1
Instruction4["ModulatedPulse"]
Instruction4 -- "Frame" --- Frame1
Instruction4 -- "Envelope" --- Waveform1
Radians2["1 rad"]
Instruction4 -- "PhaseOffset" --- Radians2
Instruction5["ModulatedPulse"]
Instruction5 -- "Frame" --- Frame1
Instruction5 -- "Envelope" --- Waveform1
Radians3["2 rad"]
Instruction5 -- "PhaseOffset" --- Radians3
Instruction6:Alignment["EndToStart"]
Instruction6:Relationship["InstructionRelationship"]
Instruction6:Relationship -- "Alignment" --- Instruction6:Alignment
Instruction6["Dependency"]
Instruction6 -- "Relationship" --- Instruction6:Relationship
Instruction6 -- "Lhs" --- Instruction4
Instruction6 -- "Rhs" --- Instruction5
Instruction7["ModulatedPulse"]
Instruction7 -- "Frame" --- Frame1
Instruction7 -- "Envelope" --- Waveform1
Radians4["3 rad"]
Instruction7 -- "PhaseOffset" --- Radians4
Instruction8:Alignment["EndToStart"]
Instruction8:Relationship["InstructionRelationship"]
Instruction8:Relationship -- "Alignment" --- Instruction8:Alignment
Instruction8["Dependency"]
Instruction8 -- "Relationship" --- Instruction8:Relationship
Instruction8 -- "Lhs" --- Instruction6
Instruction8 -- "Rhs" --- Instruction7
Instruction9["ModulatedPulse"]
Instruction9 -- "Frame" --- Frame1
Instruction9 -- "Envelope" --- Waveform1
Radians5["4 rad"]
Instruction9 -- "PhaseOffset" --- Radians5
Instruction10:Alignment["EndToStart"]
Instruction10:Relationship["InstructionRelationship"]
Instruction10:Relationship -- "Alignment" --- Instruction10:Alignment
Instruction10["Dependency"]
Instruction10 -- "Relationship" --- Instruction10:Relationship
Instruction10 -- "Lhs" --- Instruction8
Instruction10 -- "Rhs" --- Instruction9All the above examples use a end-start pulse edge alignment where one instruction sequentially follows the other. Currently, a user can specify either this end-start pulse edge alignment or a start-start alignment where two pulses are played in parallel. (A / B)
graph TD
Frame1["Frame"]
Interval1["50 ns"]
Waveform1["ConstantWaveform"]
Waveform1 -- "Duration" --- Interval1
Instruction2["ModulatedPulse"]
Instruction2 -- "Frame" --- Frame1
Instruction2 -- "Envelope" --- Waveform1
Radians2["1 rad"]
Instruction2 -- "PhaseOffset" --- Radians2
Instruction3["ModulatedPulse"]
Instruction3 -- "Frame" --- Frame1
Instruction3 -- "Envelope" --- Waveform1
Radians3["2 rad"]
Instruction3 -- "PhaseOffset" --- Radians3
Instruction4:Alignment["StartToStart"]
Instruction4:Relationship["InstructionRelationship"]
Instruction4:Relationship -- "Alignment" --- Instruction4:Alignment
Instruction4["Dependency"]
Instruction4 -- "Relationship" --- Instruction4:Relationship
Instruction4 -- "Lhs" --- Instruction2
Instruction4 -- "Rhs" --- Instruction3Similarly to sequential chains, multiple instructions that start at the same time tend to be represented by left-heavy trees. (A / B / C)
graph TD
Frame1["Frame"]
Interval1["50 ns"]
Waveform1["ConstantWaveform"]
Waveform1 -- "Duration" --- Interval1
Instruction3["ModulatedPulse"]
Instruction3 -- "Frame" --- Frame1
Instruction3 -- "Envelope" --- Waveform1
Radians2["1 rad"]
Instruction3 -- "PhaseOffset" --- Radians2
Instruction4["ModulatedPulse"]
Instruction4 -- "Frame" --- Frame1
Instruction4 -- "Envelope" --- Waveform1
Radians3["2 rad"]
Instruction4 -- "PhaseOffset" --- Radians3
Instruction5:Alignment["StartToStart"]
Instruction5:Relationship["InstructionRelationship"]
Instruction5:Relationship -- "Alignment" --- Instruction5:Alignment
Instruction5["Dependency"]
Instruction5 -- "Relationship" --- Instruction5:Relationship
Instruction5 -- "Lhs" --- Instruction3
Instruction5 -- "Rhs" --- Instruction4
Instruction6["ModulatedPulse"]
Instruction6 -- "Frame" --- Frame1
Instruction6 -- "Envelope" --- Waveform1
Radians4["3 rad"]
Instruction6 -- "PhaseOffset" --- Radians4
Instruction7:Alignment["StartToStart"]
Instruction7:Relationship["InstructionRelationship"]
Instruction7:Relationship -- "Alignment" --- Instruction7:Alignment
Instruction7["Dependency"]
Instruction7 -- "Relationship" --- Instruction7:Relationship
Instruction7 -- "Lhs" --- Instruction5
Instruction7 -- "Rhs" --- Instruction6Barrier instructions in other paradigms would be represented by an end-to-start dependency between trees of instructions linked by start-to-start dependencies as in the following example. ((A / B) | (C / D / E))
graph TD
Frame1["Frame"]
Interval1["50 ns"]
Waveform1["ConstantWaveform"]
Waveform1 -- "Duration" --- Interval1
Instruction3["ModulatedPulse"]
Instruction3 -- "Frame" --- Frame1
Instruction3 -- "Envelope" --- Waveform1
Radians2["1 rad"]
Instruction3 -- "PhaseOffset" --- Radians2
Instruction4["ModulatedPulse"]
Instruction4 -- "Frame" --- Frame1
Instruction4 -- "Envelope" --- Waveform1
Radians3["2 rad"]
Instruction4 -- "PhaseOffset" --- Radians3
Instruction5:Alignment["StartToStart"]
Instruction5:Relationship["InstructionRelationship"]
Instruction5:Relationship -- "Alignment" --- Instruction5:Alignment
Instruction5["Dependency"]
Instruction5 -- "Relationship" --- Instruction5:Relationship
Instruction5 -- "Lhs" --- Instruction3
Instruction5 -- "Rhs" --- Instruction4
Instruction8["ModulatedPulse"]
Instruction8 -- "Frame" --- Frame1
Instruction8 -- "Envelope" --- Waveform1
Radians4["3 rad"]
Instruction8 -- "PhaseOffset" --- Radians4
Instruction9["ModulatedPulse"]
Instruction9 -- "Frame" --- Frame1
Instruction9 -- "Envelope" --- Waveform1
Radians5["4 rad"]
Instruction9 -- "PhaseOffset" --- Radians5
Instruction10:Alignment["StartToStart"]
Instruction10:Relationship["InstructionRelationship"]
Instruction10:Relationship -- "Alignment" --- Instruction10:Alignment
Instruction10["Dependency"]
Instruction10 -- "Relationship" --- Instruction10:Relationship
Instruction10 -- "Lhs" --- Instruction8
Instruction10 -- "Rhs" --- Instruction9
Instruction11["ModulatedPulse"]
Instruction11 -- "Frame" --- Frame1
Instruction11 -- "Envelope" --- Waveform1
Radians6["5 rad"]
Instruction11 -- "PhaseOffset" --- Radians6
Instruction12:Alignment["StartToStart"]
Instruction12:Relationship["InstructionRelationship"]
Instruction12:Relationship -- "Alignment" --- Instruction12:Alignment
Instruction12["Dependency"]
Instruction12 -- "Relationship" --- Instruction12:Relationship
Instruction12 -- "Lhs" --- Instruction10
Instruction12 -- "Rhs" --- Instruction11
Instruction13:Alignment["EndToStart"]
Instruction13:Relationship["InstructionRelationship"]
Instruction13:Relationship -- "Alignment" --- Instruction13:Alignment
Instruction13["Dependency"]
Instruction13 -- "Relationship" --- Instruction13:Relationship
Instruction13 -- "Lhs" --- Instruction5

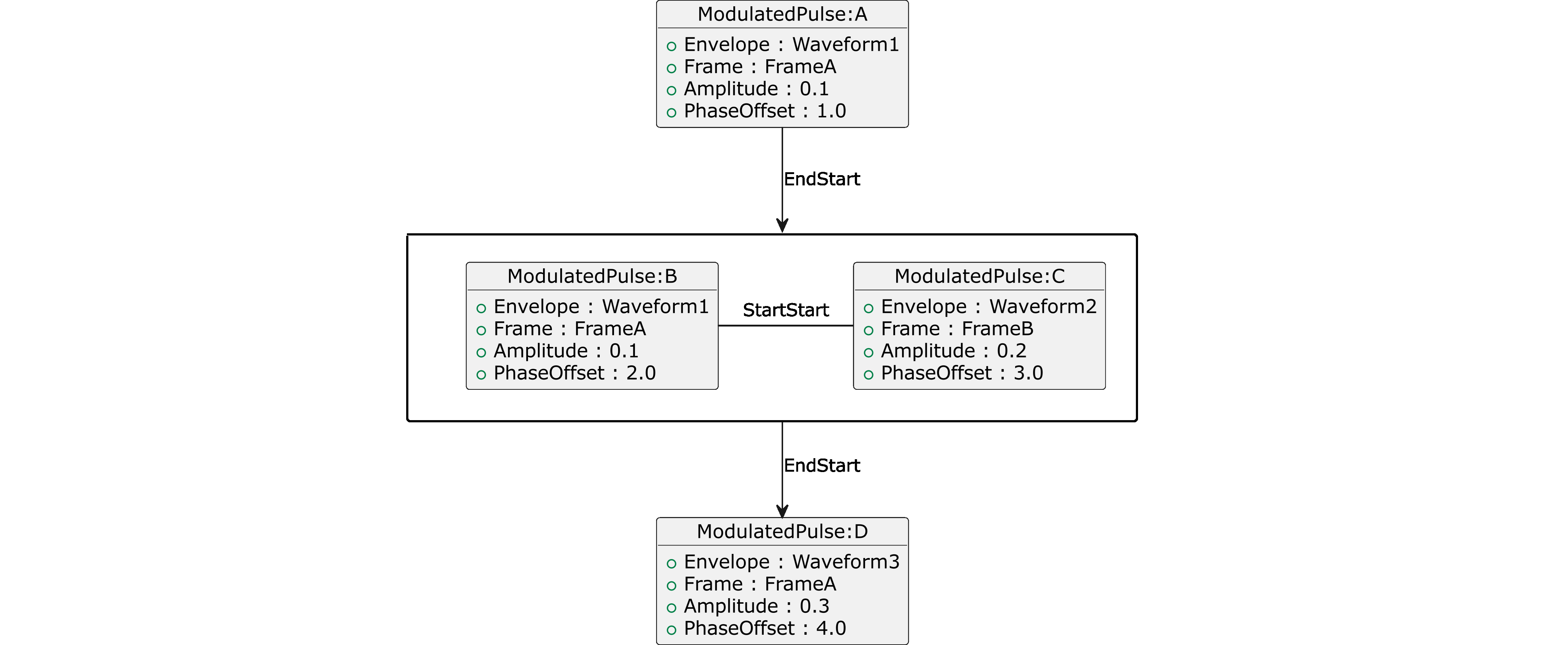

Instruction13 -- "Rhs" --- Instruction12The next example is more complex, we realize a set of four instructions with order dependencies as shown by the graph below, including both EndToStart and StartToStart alignments.
The example also flags another feature of the specification where some nodes can be children of more than one parent. In this case, instructions A, B & D use the same Frame, and instructions A & B use the same waveform (with a different amplitude).
Example schedule
Tree format:
graph TD
Frame1["Frame"]
Interval1["50 ns"]
Waveform1["ConstantWaveform"]
Waveform1 -- "Duration" --- Interval1
Instruction2["ModulatedPulse"]
Instruction2 -- "Frame" --- Frame1
Instruction2 -- "Envelope" --- Waveform1
Radians2["1 rad"]
Instruction2 -- "PhaseOffset" --- Radians2
Instruction5["ModulatedPulse"]
Instruction5 -- "Frame" --- Frame1
Instruction5 -- "Envelope" --- Waveform1
Radians3["2 rad"]
Instruction5 -- "PhaseOffset" --- Radians3
Frame2["Frame"]
Instruction6["ModulatedPulse"]
Instruction6 -- "Frame" --- Frame2
Instruction6 -- "Envelope" --- Waveform1
Radians4["3 rad"]
Instruction6 -- "PhaseOffset" --- Radians4
Instruction7:Alignment["StartToStart"]
Instruction7:Relationship["InstructionRelationship"]
Instruction7:Relationship -- "Alignment" --- Instruction7:Alignment
Instruction7["Dependency"]
Instruction7 -- "Relationship" --- Instruction7:Relationship
Instruction7 -- "Lhs" --- Instruction5
Instruction7 -- "Rhs" --- Instruction6
Instruction8["ModulatedPulse"]
Instruction8 -- "Frame" --- Frame1
Instruction8 -- "Envelope" --- Waveform1
Radians5["4 rad"]
Instruction8 -- "PhaseOffset" --- Radians5
Instruction9:Alignment["EndToStart"]
Instruction9:Relationship["InstructionRelationship"]
Instruction9:Relationship -- "Alignment" --- Instruction9:Alignment
Instruction9["Dependency"]
Instruction9 -- "Relationship" --- Instruction9:Relationship
Instruction9 -- "Lhs" --- Instruction7
Instruction9 -- "Rhs" --- Instruction8
Instruction10:Alignment["EndToStart"]
Instruction10:Relationship["InstructionRelationship"]
Instruction10:Relationship -- "Alignment" --- Instruction10:Alignment
Instruction10["Dependency"]
Instruction10 -- "Relationship" --- Instruction10:Relationship
Instruction10 -- "Lhs" --- Instruction2
Instruction10 -- "Rhs" --- Instruction9JSON format:
Job definition
{
"version": "0.1.0",
"compatible_version": "0.1.0",
"frames": {
"Frame1": {
"port": {
"id": {
"$type": "NumericLiteral",
"value": 100
}
},
"frequency": {
"$type": "NumericLiteral",
"value": 5000000000
},
"phase": {
"$type": "NumericLiteral",
"value": 0
},
"intermediate_frequency": {
"$type": "NumericLiteral",
"value": 10000000
}
}
},
"waveforms": {
"Waveform1": {
"$type": "ConstantWaveform",
"duration": {
"$type": "NumericLiteral",
"value": 5E-08
}
}
},
"entry_point": [
{
"$type": "Dependency",
"relationship": {},
"lhs": {
"$type": "ModulatedPulse",
"frame": {
"$ref": "Frame1"
},
"envelope": {
"$ref": "Waveform1"
},
"phase_offset": {
"$type": "NumericLiteral",
"value": 1
},
"amplitude": {
"$type": "NumericLiteral",
"value": 1
}
},
"rhs": {
"$type": "Dependency",
"relationship": {},
"lhs": {
"$type": "Dependency",
"relationship": {
"alignment": "StartToStart"
},
"lhs": {
"$type": "ModulatedPulse",
"frame": {
"$ref": "Frame1"
},
"envelope": {
"$ref": "Waveform1"
},
"phase_offset": {
"$type": "NumericLiteral",
"value": 2
},
"amplitude": {
"$type": "NumericLiteral",
"value": 1
}
},
"rhs": {
"$type": "ModulatedPulse",
"frame": {
"port": {
"id": {
"$type": "NumericLiteral",
"value": 200
}
},
"frequency": {
"$type": "NumericLiteral",
"value": 7000000000
},
"phase": {
"$type": "NumericLiteral",
"value": 0
},
"intermediate_frequency": {
"$type": "NumericLiteral",
"value": 20000000
}
},
"envelope": {
"$ref": "Waveform1"
},
"phase_offset": {
"$type": "NumericLiteral",
"value": 3
},
"amplitude": {
"$type": "NumericLiteral",
"value": 1
}
}
},
"rhs": {
"$type": "ModulatedPulse",
"frame": {
"$ref": "Frame1"
},
"envelope": {
"$ref": "Waveform1"
},
"phase_offset": {
"$type": "NumericLiteral",
"value": 4
},
"amplitude": {
"$type": "NumericLiteral",
"value": 1
}
}
}
}
]
}
